Valve Top Cover / Bonnet
阀门顶盖
Integrally cast valve bonnet with dense, sand-ho…
CORE ADVANTAGES
Dense structure, no visible sand holes
Radiused transitions avoid stress cracking
Burr-free machined stem bore
Flat flange for even bolt load
Attach your 2D/3D drawing on the next step — we reply within 24 business hours.
TECHNICAL DOCUMENTS
TDS / MSDS / material certificates and dimensional inspection reports are provided on request for every order. Please send us an inquiry.
Technical Specs
MATERIAL
Ductile Iron QT450-10 / Cast Steel
WEIGHT
Approx. 20 - 300 kg (size dependent)
PROCESS
Integral resin sand casting + stem bore and flange machining
TOLERANCE
CT8-CT9, machined bore to drawing
LEAD TIME
5-30 days
MOQ
1 piece (sample), serial quantities on request
SHIPPING
Express delivery, Land transport, Sea transport
ORIGIN
Qingdao, Shandong, China
CERTIFICATION
ISO 9001 / Material & Dimensional Report
MODEL / SKU
JHD-2337911
Product Introduction

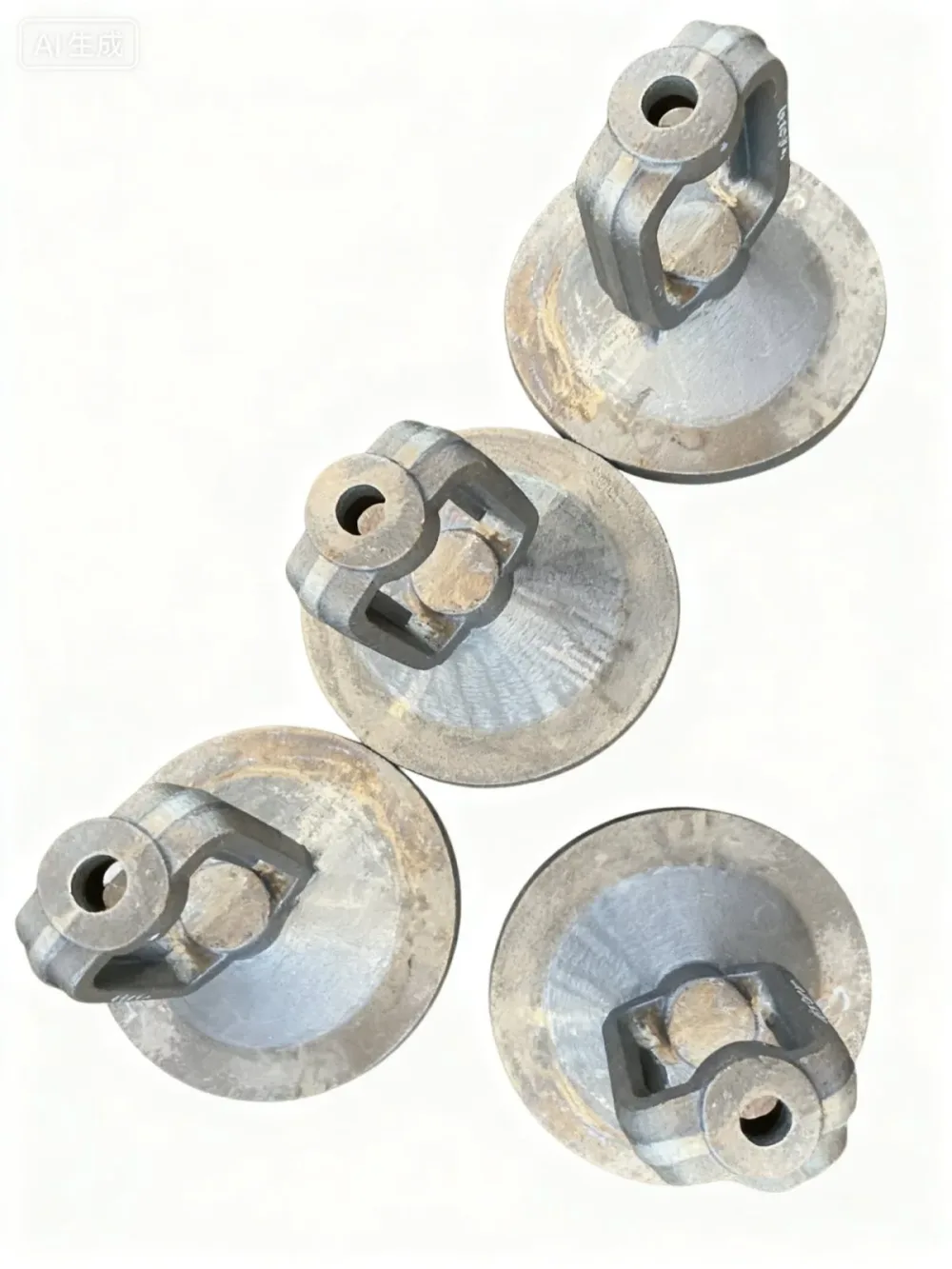

The valve top cover is produced by integral moulding. The surface shows an even metal texture without visible sand holes or blowholes, which indicates high material density and good pressure resistance — exactly what a bonnet needs.
The junction between the top lifting ring and the base is generously radiused. This increases load-bearing strength and, more importantly, removes the stress concentration that causes cracking in sharp-cornered designs.
The bore through the centre is machined smooth and burr free so it mates accurately with the valve stem, minimising friction and the risk of leakage. The round flange at the bottom enlarges the contact area with the valve body so bolt load is distributed evenly and sealing performance improves.
Typical Applications
- Gate and globe valves
- Butterfly and check valves
- Water and steam pipeline valves
