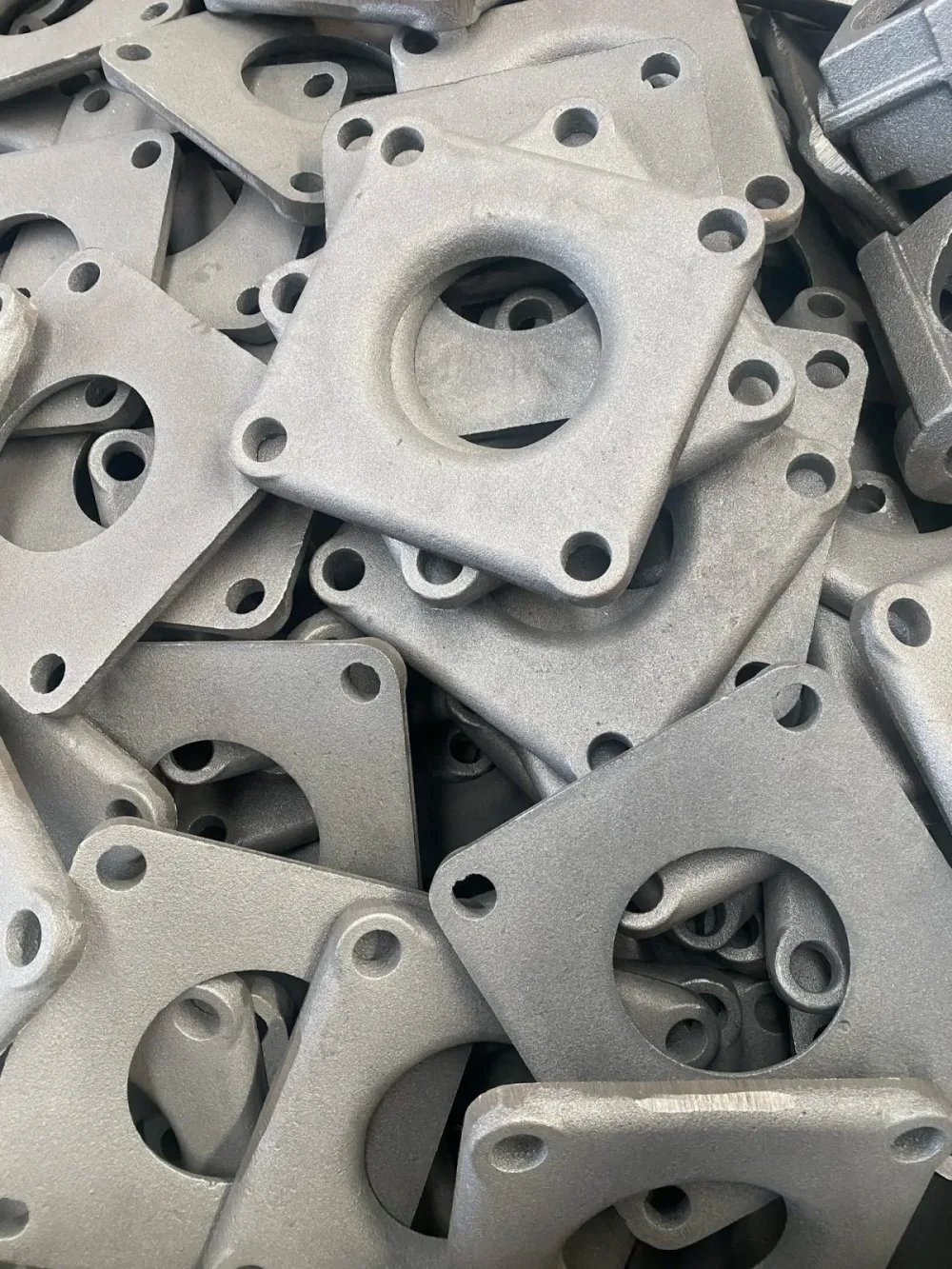

Flanged Volute Cover
法兰蜗盖
Flanged volute cover for pumps and pipe assembli…
CORE ADVANTAGES
Machined sealing face for leak-tight joints
Bolt circle to drawing or standard
Ductile iron strength and toughness
Hydrostatic test on request
Attach your 2D/3D drawing on the next step — we reply within 24 business hours.
TECHNICAL DOCUMENTS
TDS / MSDS / material certificates and dimensional inspection reports are provided on request for every order. Please send us an inquiry.
Technical Specs
MATERIAL
Ductile Iron QT450-10 / Grey Cast Iron HT250
WEIGHT
Approx. 1000 kg (size dependent)
PROCESS
Resin sand casting + flange and sealing face machining
TOLERANCE
CT9, machined sealing face flatness to drawing
LEAD TIME
10-30 days
MOQ
1 piece (sample), serial quantities on request
SHIPPING
Express delivery, Sea freight
ORIGIN
Qingdao, Shandong, China
CERTIFICATION
ISO 9001 / Material & Dimensional Report
MODEL / SKU
JHD-2302698
Product Introduction
Flanged covers are used throughout machinery and piping to close and seal a housing. Bolts pass through the holes on the flange to clamp the cover against the body, and the machined sealing face carries the gasket that keeps liquids or gases inside.
This cover is cast in ductile iron for a combination of strength and toughness, then machined on the sealing face and bolt circle. Flatness of the sealing face is the critical characteristic and is inspected before shipment.
Dimensions can follow your drawing or standard flange tables. Where the assembly is pressure rated, the casting can be supplied with a hydrostatic test certificate.
Typical Applications
- Pump volute covers
- Pipeline assemblies
- Engine and equipment housings
