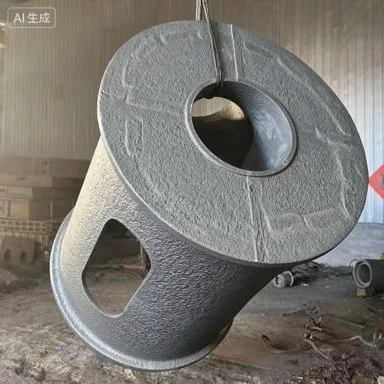

Cast Iron Shaft Sleeve / Bushing
轴套
Wear-resistant shaft sleeve that supports, locat…
CORE ADVANTAGES
Good wear resistance under load
Hollow design aids lubrication
Machined to your fit tolerance
Matched sets available
Attach your 2D/3D drawing on the next step — we reply within 24 business hours.
TECHNICAL DOCUMENTS
TDS / MSDS / material certificates and dimensional inspection reports are provided on request for every order. Please send us an inquiry.
Technical Specs
MATERIAL
Grey Cast Iron HT250 / Ductile Iron QT500-7
WEIGHT
Approx. 1000 kg per batch item
PROCESS
Resin sand casting + turning / boring to fit
TOLERANCE
Machined bore H7-H8, OD to drawing
LEAD TIME
1-30 days
MOQ
1 piece (sample), serial quantities on request
SHIPPING
Express delivery, Sea freight
ORIGIN
Qingdao, Shandong, China
CERTIFICATION
ISO 9001 / Material & Dimensional Report
MODEL / SKU
JHD-2303191
Product Introduction
The shaft sleeve combines wear resistance, strength and rigidity, so it can carry load and friction in mechanical transmission assemblies. Its job is to support and locate the shaft while reducing direct friction against surrounding components.
The hollow design reduces weight and, just as usefully, helps distribute lubricant and other media across the bearing surface. Better lubrication means less wear and a longer service life for both sleeve and shaft.
Sleeves are supplied with the bore and outside diameter machined to your fit specification, and can be delivered in matched sets where several sizes are used on the same machine.
Typical Applications
- Mechanical transmission assemblies
- Rolling mill and mining equipment
- Pump and fan shaft supports
