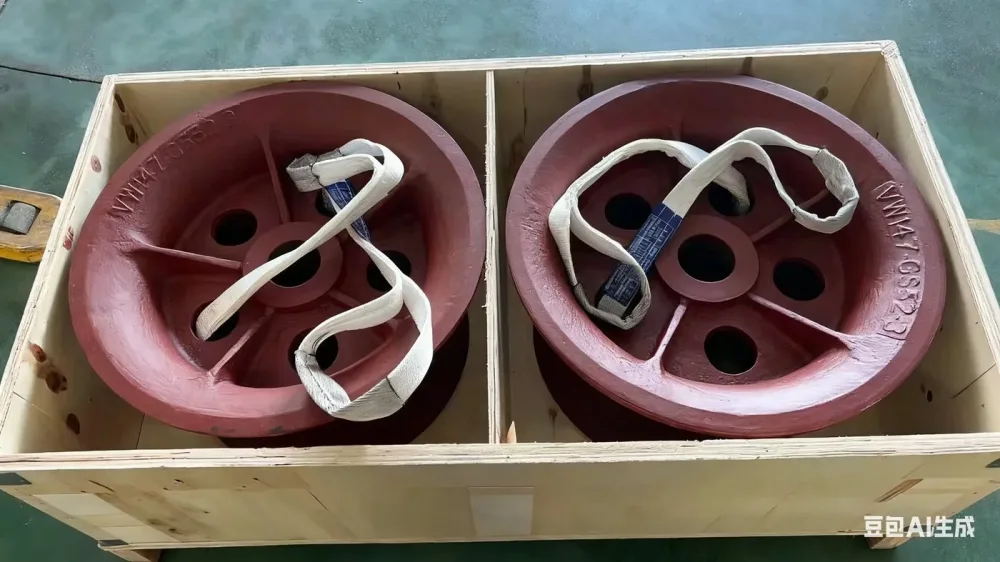

Cast Iron Pulley / Sheave
齿套（滑轮）
Cast iron pulley with good wear resistance and s…
CORE ADVANTAGES
High load capacity
Wear-resistant groove profile
Machined bore and keyway
Balancing on request
Attach your 2D/3D drawing on the next step — we reply within 24 business hours.
TECHNICAL DOCUMENTS
TDS / MSDS / material certificates and dimensional inspection reports are provided on request for every order. Please send us an inquiry.
Technical Specs
MATERIAL
Grey Cast Iron HT250 / Ductile Iron QT450-10
WEIGHT
Approx. 1000 kg per batch item
PROCESS
Resin sand casting + groove and bore machining
TOLERANCE
CT9, machined bore and keyway to drawing
LEAD TIME
5-30 days
MOQ
1 piece (sample), serial quantities on request
SHIPPING
Express delivery
ORIGIN
Qingdao, Shandong, China
CERTIFICATION
ISO 9001 / Material & Dimensional Report
MODEL / SKU
JHD-2299354
Product Introduction
The component shown is a cast iron pulley. The material gives it the wear resistance and strength needed to carry large loads over long duty cycles.
Pulleys of this type are used throughout lifting and conveying systems. By guiding a rope or cable they change the direction of the applied force or provide mechanical advantage, and they are key transmission or load-bearing elements in mining, construction and material handling equipment.
Groove profile, hub bore and keyway are machined to your drawing, and the casting can be balanced where the operating speed requires it.
Typical Applications
- Hoists and winches
- Mining and construction machinery
- Conveying and material handling
