Reinforced Shaft Joint / Flange Coupling
加强轴关节
Multi-layer flange coupling that transmits torqu…
CORE ADVANTAGES
Rigid bolted torque transmission
Through bore ensures coaxiality
Multi-layer flange reinforcement
Easy installation and maintenance
Attach your 2D/3D drawing on the next step — we reply within 24 business hours.
TECHNICAL DOCUMENTS
TDS / MSDS / material certificates and dimensional inspection reports are provided on request for every order. Please send us an inquiry.
Technical Specs
MATERIAL
Ductile Iron QT500-7 / Cast Steel
WEIGHT
Approx. 1000 kg per batch item
PROCESS
Resin sand casting + CNC turning and drilling
TOLERANCE
Machined bore H7, concentricity to drawing
LEAD TIME
5-30 days
MOQ
1 piece (sample), serial quantities on request
SHIPPING
Express delivery, Ocean shipping, Land transport
ORIGIN
Qingdao, Shandong, China
CERTIFICATION
ISO 9001 / Material & Dimensional Report
MODEL / SKU
JHD-2307719
Product Introduction

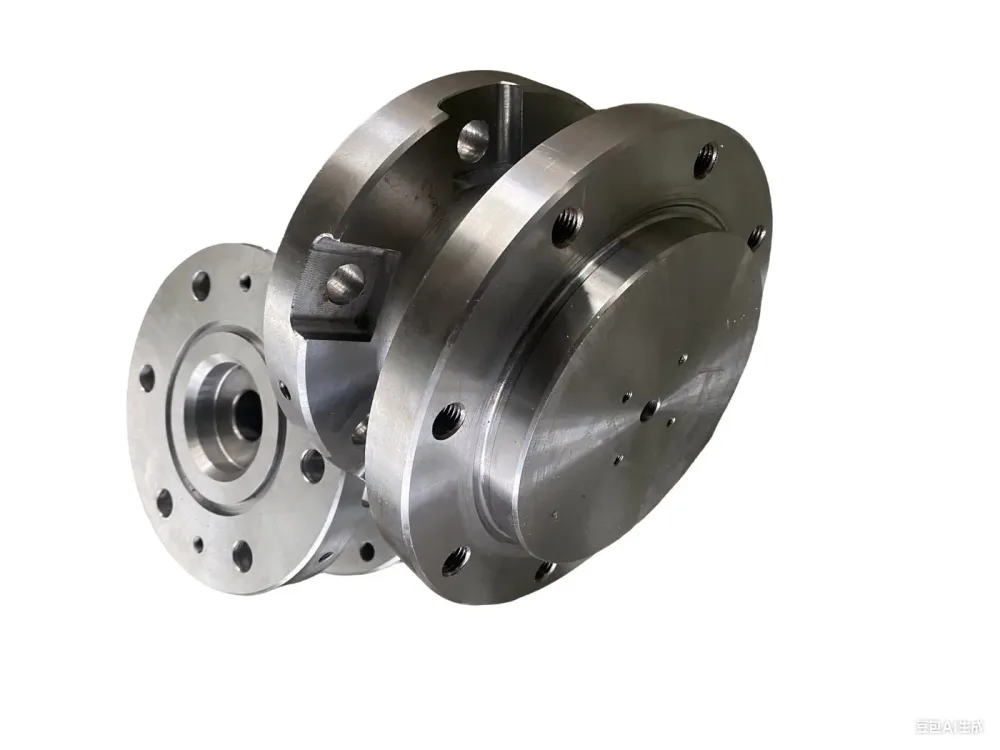

This reinforced shaft joint has a silver-grey metallic surface and is built up from several circular flange plates and connecting elements.
Structurally, the main body uses a nested multi-layer flange design. Each layer carries a ring of bolt holes for fixing, a protruding square block on the side adds stability, and the central shaft bore runs through the entire part to guarantee coaxiality.
Functionally it transmits torque in mechanical drive systems. The rigid bolted flange connection delivers high-precision power transmission, making it suitable for shaft connections in heavy equipment and precision machinery. The bolt pattern also keeps installation, disassembly and maintenance simple.
Typical Applications
- Heavy equipment drive lines
- Precision machinery shafts
- Industrial couplings
