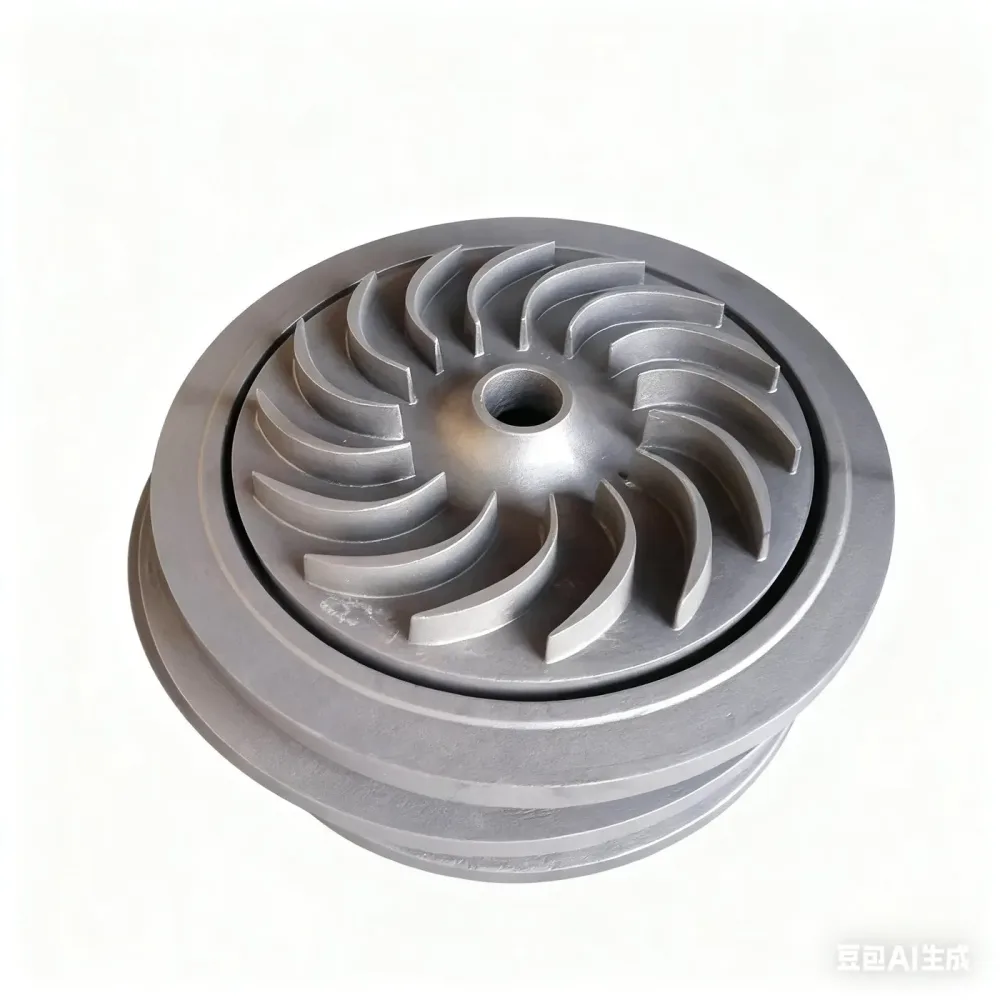

Worm Gear Plate / Impeller Disc
蜗轮齿盘
Compact impeller disc for fluid machinery — blad…
CORE ADVANTAGES
Efficient blade profile
Compact, easy to integrate
Machined and balanced
Repeat orders from existing patterns
Attach your 2D/3D drawing on the next step — we reply within 24 business hours.
TECHNICAL DOCUMENTS
TDS / MSDS / material certificates and dimensional inspection reports are provided on request for every order. Please send us an inquiry.
Technical Specs
MATERIAL
Ductile Iron QT450-10 / Wear-resistant iron
WEIGHT
Approx. 1000 kg per batch item
PROCESS
Resin sand casting + machining + balancing
TOLERANCE
CT9, machined hub to drawing
LEAD TIME
5-30 days
MOQ
1 piece (sample), serial quantities on request
SHIPPING
Express delivery
ORIGIN
Qingdao, Shandong, China
CERTIFICATION
ISO 9001 / Material & Dimensional Report
MODEL / SKU
JHD-2331460
Product Introduction
As a core component of fluid machinery, the impeller disc does the actual work on the medium. Its blade design transfers mechanical energy into the liquid or gas as kinetic and pressure energy, so pumps and fans reach their duty point efficiently.
A second advantage is the compact envelope. Compared with alternative fluid-moving devices, the impeller occupies little space and integrates easily into complete equipment, saving overall installation volume.
Blade geometry, hub bore and balancing requirements are all produced to your drawing, and existing patterns can be reused to shorten lead time on repeat orders.
Typical Applications
- Pumps and fans
- Fluid machinery assemblies
- Industrial blowers
